Why? - wasm, async, observability

• Production EVMs (geth, revm, evmone) are hyper-optimized and hard to audit
• No clean wasm-native, async-friendly implementation existed
• Target: browser-based tooling — IDEs, light clients, simulations
• Goal: deep understanding of how EVM works "under the hood"

Why? - WebAssembly

• Runs in the browser — no backend, no install
• wasm32-unknown-unknown: no OS, no stdlib
• Same code runs natively and in the browser
• Portable simulation at the edge
• wallets
• IDEs
• light clients

Why? - async

• EVM needs external data: storage slots, account code, balances
• In the browser those fetches are always async (fetch, XHR)
• Sync EVM will fail to run in the browser (blocking the main thread)
• Async-first design makes the browser a first-class target

Why? - observability

• Production EVMs are black boxes — input in, output out
• Solenoid exposes every opcode, stack frame, memory write, storage access
• Useful for: debugging, education, security auditing, simulation UI
• Though full traces might be too much data to handle in browser effectively

Why? - security

• February 2025: $1.5B stolen from ByBit — largest crypto hack ever
• Root cause: malicious transaction looked safe in the UI, but wasn't
• A browser-native EVM could have simulated the full execution before signing
• Side effects, storage changes, token transfers — all visible before broadcast

Simulation could have prevented the ByBit hack!

How? - overview

• 📄 Spec — implement the Yellow Paper + EIPs
• ⚖️ A/B — compare step-by-step against revm
• 🔁 Trial & error — run real mainnet blocks

How? - spec

• Yellow Paper is the ground truth — but it's dense and occasionally wrong
• EIPs override the Paper — and sometimes contradict each other
• Gas rules have many special cases: SSTORE, CALL, warm/cold access
• Ethereum GeneralStateTests: ~18k+ test cases across all opcodes and EIPs
• Getting to 99%+ took fixing multiple bugs — each one a spec rabbit hole

How? - A/B against revm

• The revm trace is the source of truth*
• Run the same tx through YEVM and revm
• Compare every step: opcode, PC, gas, ...
• Step mismatch → implementations diverge
• Gas + Trace + State match → peace of mind

How? - trial & error

• Replay real mainnet blocks — 10, then 100, then 300, then 1000
• Each milestone exposed new bugs: EIP-7702, CREATE2 etc
• Failed txs go into a queue, get fixed, re-replayed
• Fail, Debug, Fix, Replay - Rinse - Repeat

How? - ...

• 🤯 why would anyone send ETH to 0x0?
• 🙃 why is this address/cell cold/hot?
• 🫠 intrinsic gas is capped by floor
• 😠 refund is capped by constant factor
• 😩 63/64 rule for *CALL gas makes a mess
• 😵‍💫 revm offers very limited insights really
• 🤔 revert impl was tricky to debug & test
• ...

Solenoid: async-first design

• External calls (storage, code) are async trait methods
• Portable: compiles to wasm32-unknown-unknown
• Observable: every state transition is inspectable

  // simplified
  async fn execute(&mut self, opcode: u8) -> Result<()> {
      match opcode {
          SLOAD => {
              let key = self.stack.pop()?;
              let val = self.storage.load(key).await?;  // async fetch
              self.stack.push(val)
          }
          // ...
      }
  }


The async tax

• Each .await is a yield point — overhead adds up
• Codegen for deeply nested async is expensive
• Result: 10–100× slower than revm

But for browser use cases — latency hides the cost:

• Network round-trips dominate
• User doesn't notice 10ms vs 100ms
• Wasm portability is worth the tax

Solenoid: fun facts 🎉

• 🦄 UniSwap quoter was first external call

  📊 QuoterV2 Results:
    💰 Amount Out: 1 WETH for 3943.532812 USDC
    📊 Price After (WETH/USDC): 3955.222269012662
    🎯 Initialized Ticks Crossed: 1
    ⛽ Gas Estimate: 84919
  ✅ Transaction executed successfully!
  🔄 Reverted: false
  ⛽ Gas used: 123290


• 🤖 All precompiles implemented by Claude Code
• 📊 Aztec L2 4.5M gas txs: 55GB of opcode traces

Lessons learned from Solenoid

• The Yellow Paper has many subtle edge cases
• Gas accounting is hard (looking at you SSTORE)
• Debug info is very expensive — allocator round-trips add up fast in a hot loop
• Async in hot paths is still very expensive
• Key insight: the VM yields at every .await — what if it didn't?

Lessons learned from Solenoid

Designing and evolving such complex thing as EVM is hard

YEVM: make yield part of the design

• Solenoid yields to the executor on async fetches
• YEVM returns fetch request, sync execution
• Execution and fetching are decoupled:
• opcode handler is sync (no .awaits)
• executor is async (handles fetches)
• but deals with "pending" side-effects

YEVM: model

pub struct Call {...} // from, to, gas, data, value

pub enum HaltReason {...} // out-of-gas, out-of-memory, ...
pub enum CallMode {...} // call, static, delegate, callcode, create, create2
pub enum Fetch {...} // code, nonce, balance, account, block, state

pub enum EvmYield {
    Return(Vec<u8>),
    Revert(Vec<u8>),
    Halt(HaltReason),
    Call(Call, CallMode),
    Fetch(Fetch),
}

pub type EvmResult<T> = std::result::Result<T, EvmYield>


YEVM: dispatch

pub fn dispatch<S: State>(
    op: u8,
    evm: &mut Evm,
    ctx: &Context,
    call: &Call,
    state: &mut S) -> EvmResult<()> {
    match op {
        0x00 => basic::stop(evm),
        // ...
        0x31 => chain::balance(evm, ctx, call, state),
        // ...
        0xFF => calls::selfdestruct(evm, ctx, call, state),
        _ => invalid(evm, ctx, call, state),
    }
}


YEVM: BALANCE handler

pub fn balance<S: State>(evm: &mut Evm, state: &mut S) -> EvmResult<()> {
    evm.gas_charge(100)?;
    let [acc] = evm.peek()?;
    let acc: Acc = acc.to();
    let Some(balance) = state.balance(&acc) else {
        return Err(EvmYield::Fetch(Fetch::Balance(acc)));
    };
    if state.warm_acc(&acc) {
        evm.gas_charge(2_500)?;
    }
    evm.push(balance)?;
    Ok(())
}


YEVM: pending state

Opcode handler:

• stores pending state changes
• applies them on success
• reverts them on fetch

YEVM: streaming traces

• Solenoid collected full per-opcode traces in memory → 55GB for Aztec rollup txs
• YEVM emits trace events as a stream — consumer decides what to keep
• Same observable design, zero memory blowup
• Verified for 5M+ gas transactions with 100k+ steps

YEVM: streaming

• Same code needs to work natively and in a browser
• Has to be non-blocking and not use any sync primitives
• 🤔

YEVM: streaming

• Problem solved: futures::channel::mpsc
• Needs explicit yields to reduce memory pressure

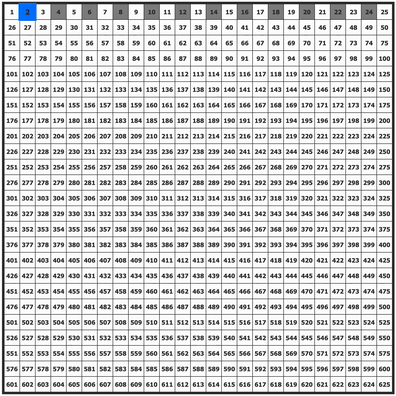

• See sieve for more details

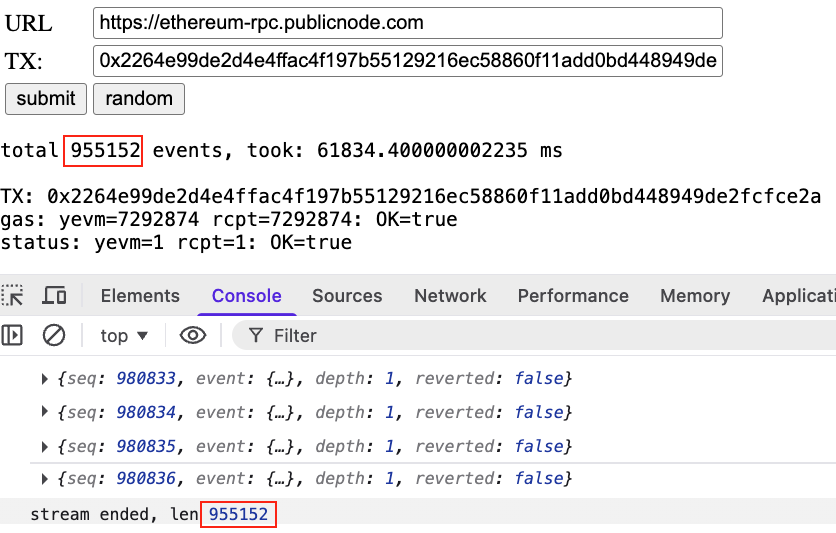

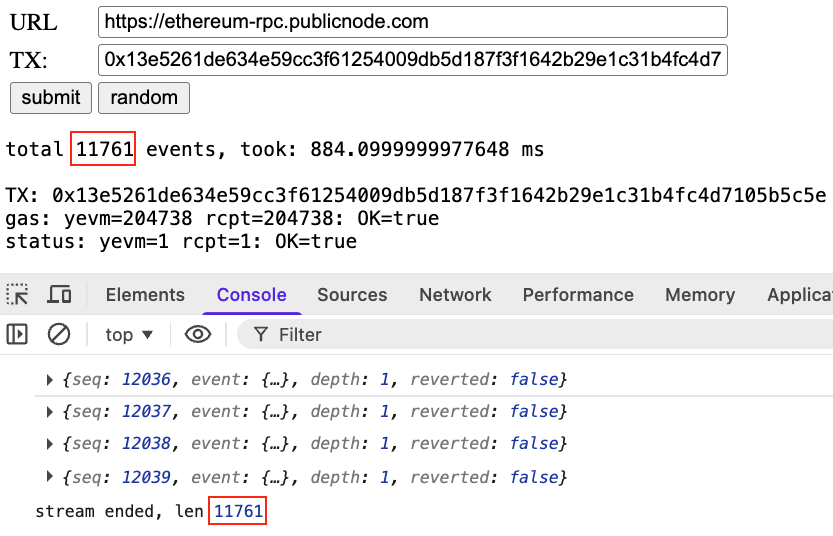

YEVM: streaming

YEVM: streaming

YEVM: results

• 99%+ of Ethereum GeneralStateTests (Cancun fork) passing
• not the case for Osaka fork (current one)
• 1300+ mainnet blocks replayed — zero failed transactions
• Comparable to revm performance on modern hardware
• Seamlessly builds for wasm32-unknown-unknown target
• minor code tweaks were still necessary

YEVM: benchmarks

3 random blocks from mainnet

• B1: Block 24929490 (373 txs, 32 466 055 gas)
• B2: Block 24929491 (74 txs, 20 653 399 gas)
• B3: Block 25000000 (377 txs, 33 774 715 gas)

AVG time (ms) to execute full block:

YEVM in the browser

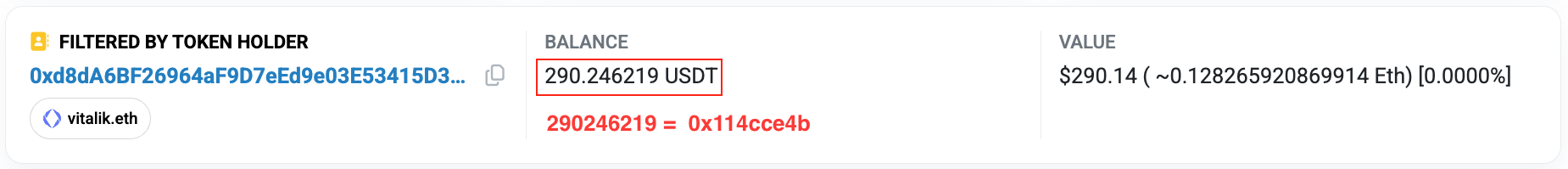

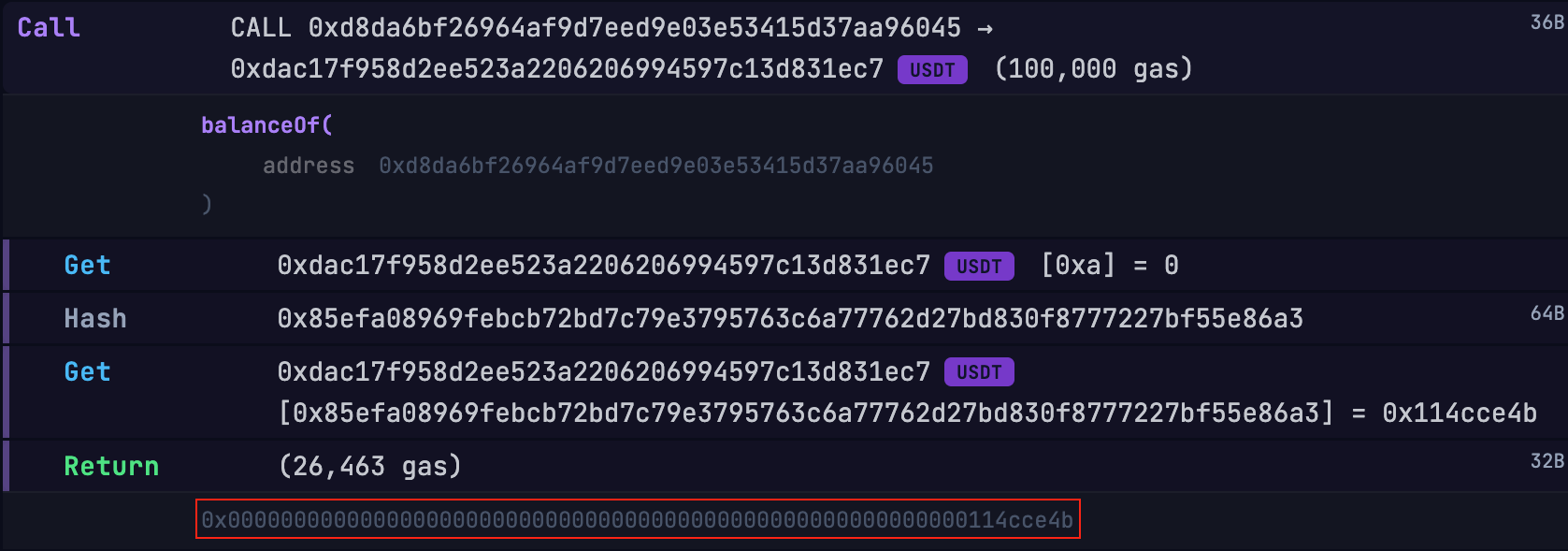

Live demo: check vitalik.eth USDT balance

yevm

etherscan

YEVM in the browser

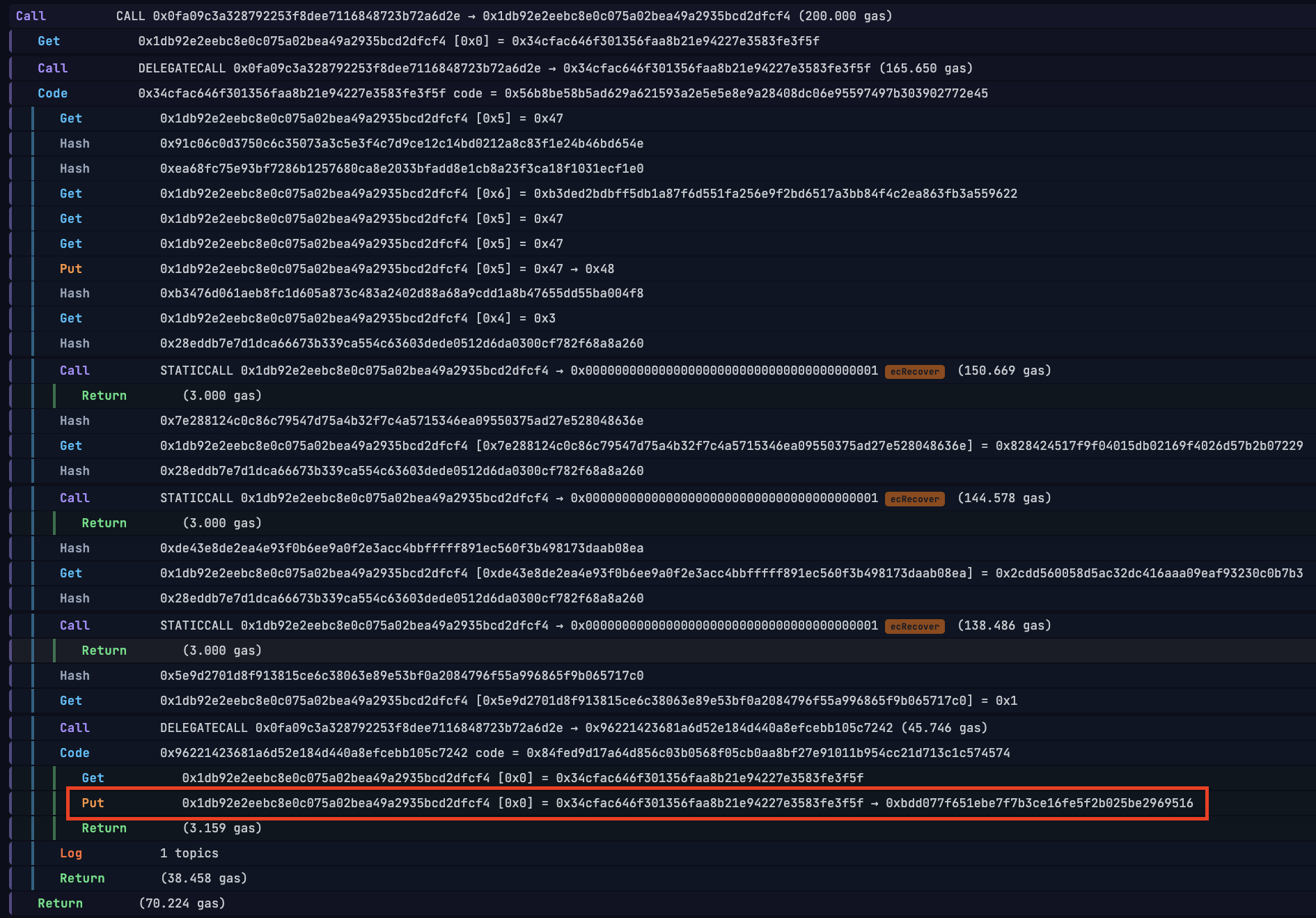

ByBit hack: Impl Swap TX (21895238:116)

YEVM in the browser

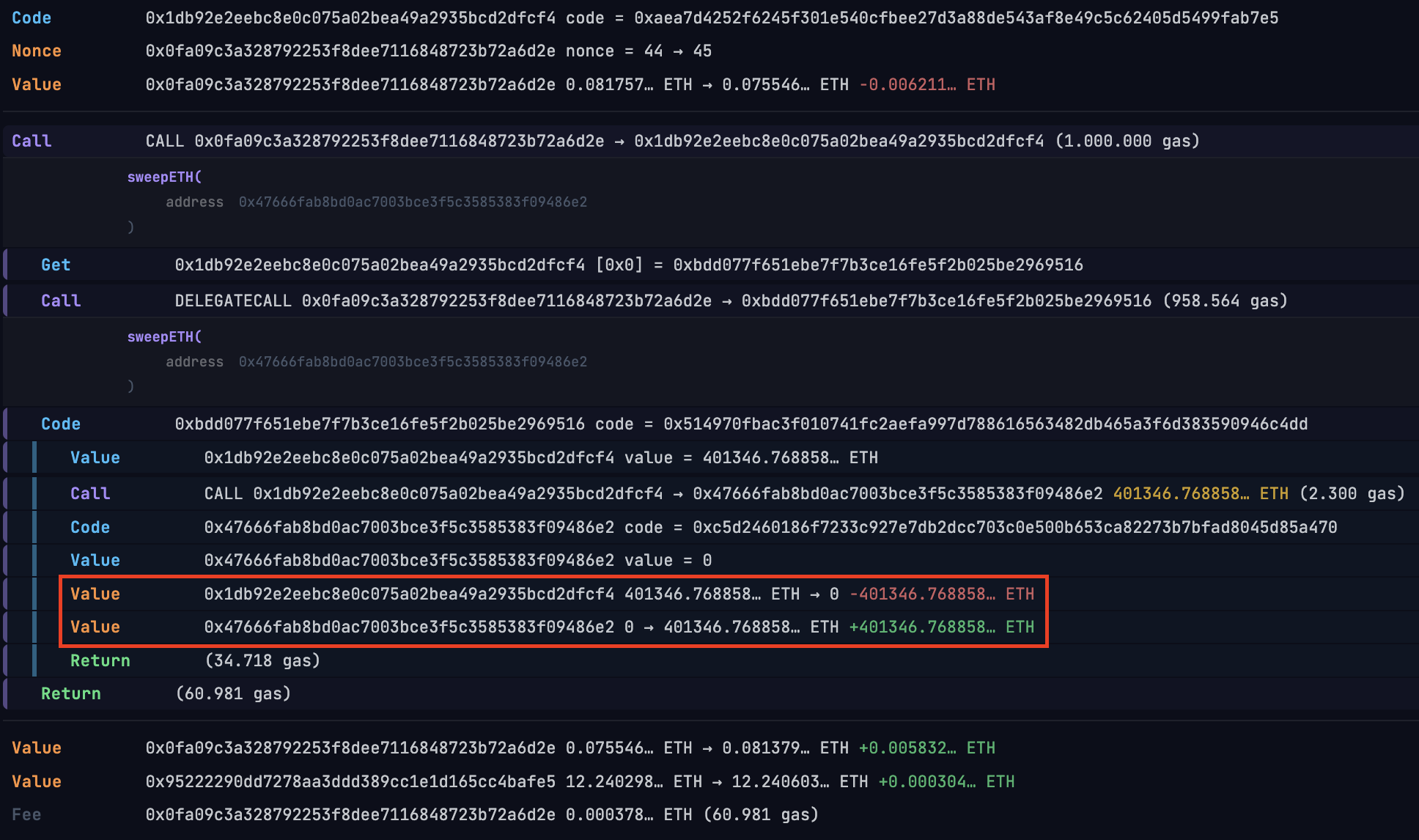

ByBit hack: Drain ETH TX (21895251:35)

Q&A

Thank you!
